ZMR250 Carbon Fiber R/C Motor ESC CC3D Flight Mode 2 Controller Combo - 155.62 €

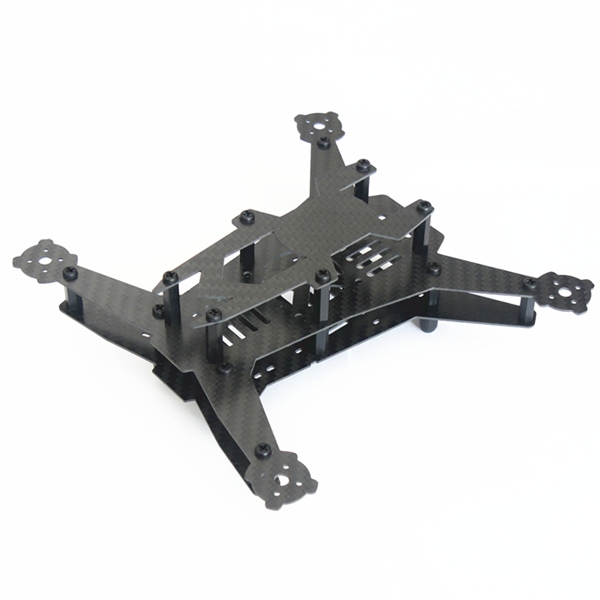

Item Name: ZMR250

Materials: Carbon Fiber

Fasteners: Stainless Steel & Red Metal 8/8

Size: 250mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter

Maximum Propeller: 5"(Suggest 5030 propeller)

Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)

Flight Controller Mount: 30.5mm x 30.5mm

Board Camera Mount: 32mm x 32mm

Motor:
Product Name: 1806 2400KV Mini multi-rotor motors
Manufacturers Number: 1806
KV value: 2400kv
Stator diameter: Φ18
Motor Weight: 18g
Supply voltage: 2-3s
Maximum current: 6.5A
Maximum power: 70W
Dimensions: 25*25*33mm (without cable)

ESC:
Dimensions: 40 x 27 x 8mm (without cable)
Weight: 14g (contains the line)
Lithium Battery: 2-3S
BEC Output: 5V2A (linear equation)
Continuous current: 12A
Burst Current: 14A
Support frequency: 30-499Hz
Output line: 22 # 6cm

CC3D Flight control board:
Bare board size: 36mm x 36mm x 14mm
Bare board weight: 7.3g

FS-T6:
Channels: 6 Channels
Mode:Mode 2 Left Hand Throttle
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
Bandwidth: 500Hz
RF Power: Less Than 20dBm
Sensitivity: 1024
Low Voltage Warning: 9V
Power: 12V DC (1.5AA*8)
Size: 302x190x93mm

Package Included:

1 x Mini ZMR250 Quadcopter frame
4 x 1806 motorwith eight screws
4 x 12A ESC
1 x CC3D Flight control boardwith cable long 20cm
1 x FS-T6 Mode 2 remote control

2 x Pairs of 5030 GF Propellers
1 x ESC Connection Board
