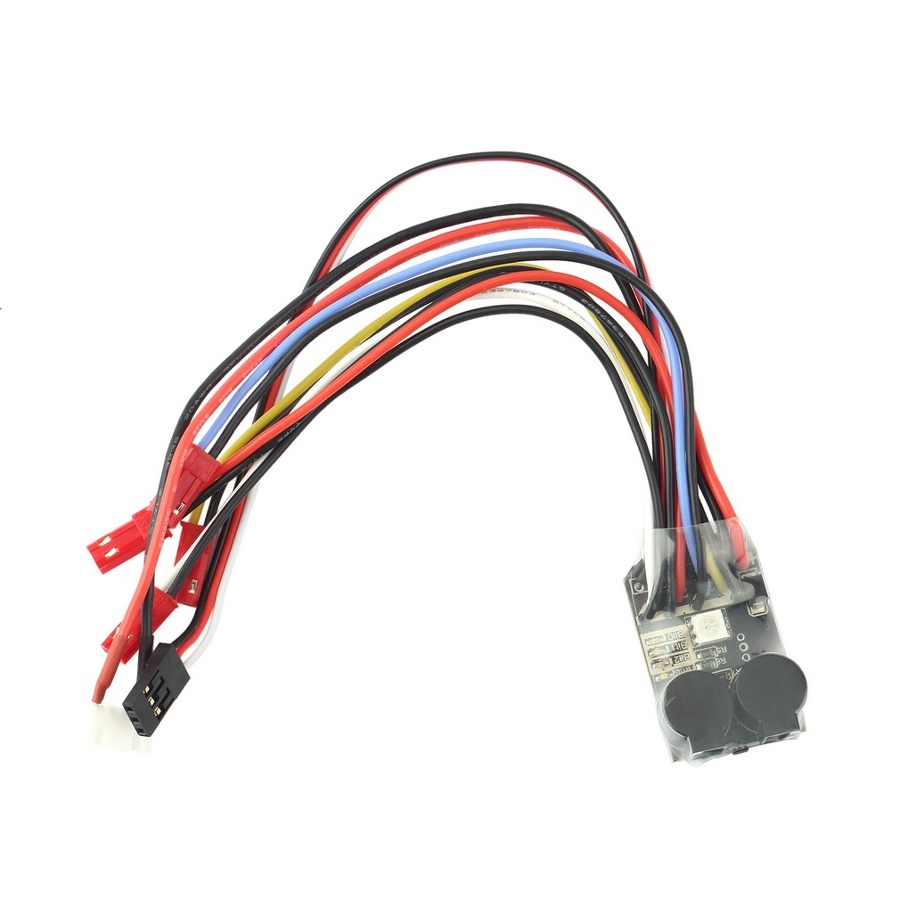

VL2IN1 Voltage Alarm Alert with LED
Description:
Description:
Item Name: Voltage Alarm
Voltage: >=13V 3S
1. It will beep 3 times when it power on, and display the alarm voltage date. 3 LED will flash in different color acording to the valtage:
Green: >3.8V/cell Blue: >3.7V/cell Yellow: >3.6V/cell
Orange: >3.5V/cell Purple: >3.4V/cell R ed: <=3.4V/cell
2. Alarm Voltage Setting:
Anytime long press the button till 4 LEDs flash, release the button and start to set the alarm voltage, White LED off now.
Short Press the button, the alarm voltage can be set from 3.0V~3.7V circularly. 3 Red LEDs will display according to the binary method. 3 Red LEDs are off, means it will alarm when voltage of single cell battery lower than 3.0V; 3 Red LEDs are on, the alarm voltage is lower than 3.7V/cell, factory setting is 3.3V. Wait for 3 seconds after setting, it will beep twice and save the setting, then finished. If you press the button till 4 LEDs flash before it saves, release button and enter the alarm setting.
3. Timing Alert Setting:
When white LED is on, means it it in Timing Alert status. Timing alert can be set from OFF to 5 minutes to 11 minutes circularly, which is showed by 3 red LEDs accroding to the binary method, the factory setting is closed.Wait for 3 seconds after setting, it will beep twice and save the setting, then finished. If you press the button till 4 LEDs flash before it saves, release button and enter the voltage alarm setting.
If both Timing Alert and Voltage Alarm are triggered, it will beep rapidly as the way of voltage alarm. Both setting can be switched by long press the button, will be saved and won't changed after the outage.
4 LEDs Controller:
4 LED modes can be switched by controller circularly, totall 9 modes. Recommended by shifting the switch on transmitter. Also it can be controlled by two-way switch and three-way switch. The middle of three-way switch need to be set as 50%, the other two are 0% and 100%. It can be only switched for one time in 0.5 second and will beep for 5 times after switching.
Package Included:
1 x Voltage Alarm
