RC250 Frame Kit Combo w/MX2204 Motor 12A ESC 5030 Propeller Mini CC3D FC
Descriptiion:

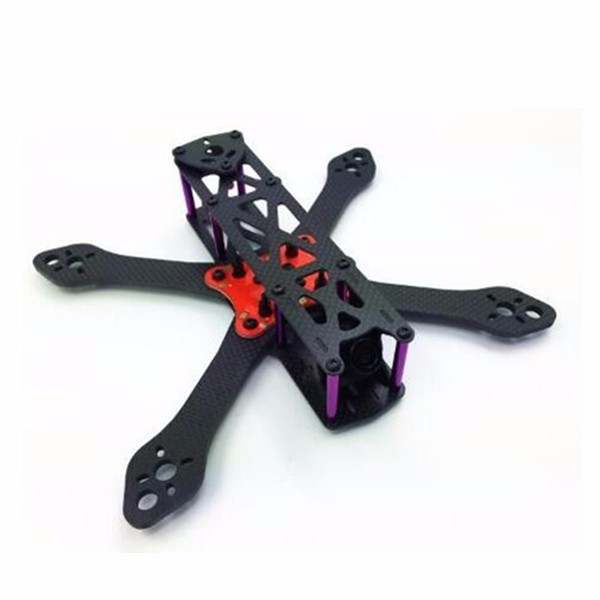

Mini 250 FPV Quadcopter Frame Specifications:
Materials: 3k Weave Carbon Fiber
Fasteners: Stainless Steel + Nylon 6/6
Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
Maximum Propeller: 5"
Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky
X2204 2300kv)
Flight Controller Mount: 30.5mm x 30.5mm
Board Camera Mount: 32mm x 32mm
2204 2300KV Motor Specification:
KV Value (RPM/V): 2300
Motor Diameter (mm): 34
Motor Length (mm): 27
Net Weight (g): 33
Weight (g): 43
Color: Black
Shaft Diameter (mm): 3
12A ESC Specifications:
Input Voltage: 2-3S LIPO
Working Current: 12A
BEC: 5V / 1A
Dimensions: 38 x 20 x 6 mm
Weight: 30 g
Package weight: 40G
CC3D Flight Controller Introduction:
Item name: CC3D Atom/Mini CC3D/CC3D EVO
Size (board only): 30mm x 17mm
Size (in case): 22 x 38 x 12mm WxLxH
Features:
With stable performance, it is practical and durable
Offering you high compatibility, reliability and stability
Driving and controlling motor to complete all kinds of instructions
Suitable for 250 Mini four axis and F330 aircraft,etc
It is very popular in retail market
Great Outrunner Brushless Motor
Package Included:
1 x Mini 250 FPV Quadcopter Frame (Not assembled)
1 x ESC Connection Board
4 x Motor (cw 2PCS+ccw 2PCS)
4 x 12A Simonk ESC
2 x 5030 Propeller Pair
1 x MINI CC3D Flight Control Board Set
