Main Features:
- 3K full carbon fiber frame, light and sturdy, with a wheelbase of 95mm
- SP Racing F3 EVO brushed flight controller V2.0 comes with buzzer and supports 1S ( 4.2V ) and 2S ( 8.4V ) voltage input as well as PPM, SBUS, DSM / DSM2 / DSMX signal input
- STM32F303CCT6 + MPU6500, top configuration, guarantees the stable flight of the drone
- FLYSKY 2.4GHz 6CH PPM receiver + FLYSKY FS - i6 6CH transmitter
- AIO FPV camera, 520TVL 120 degree FOV, integrated with 5.8G 32CH 25mW video transmitter
- 8520 coreless motor, compatible with 3.7V input
- Includes 3.7V 600mAh 25C LiPo
Specifications:
General
Wheelbase: 95mm
Motor: 8520 coreless
Propeller length: 55mm
Battery: 3.7V 600mAh 25C LiPo
Charger: B3 balance charger
Flight Controller
Item: SP Racing F3 EVO brushed V2.0
Voltage supply: 1S ( 4.2V ) or 2S ( 8.4V )
Configuration: STM32F303CCT6 + MPU6050
Compatible signal input: PPM, SBUS, DSM / DSM2 / DSMX
Buzzer: yes
AIO FPV Camera
Sensor: 1/4 inch HD CMOS
Operating voltage: 3.3 - 4.5V
Operating current: 140mA at 3.7V
TV system: PAL / NTSC switchable
Pixels: 720 x 576px ( PAL ); 720 x 480px ( NTSC )
Lens angle: 120 degree ( horizontal ); 100 degree ( vertical )
Integrated video transmitter: 5.8G 32CH 25mW
Image transmission distance: about 200m
Antenna gain: 3dBi
FLYSKY 2.4GHz 6CH Receiver
2.4GHz system:Â AFHDS
Operating voltage:Â 5V
Antenna length:Â 30mm
Receive distance:Â 100m
Output:Â PPM
Fail-safe: no
Compatibility:
FS - I6, FS - TH9X, FS - GT2B, FS - GT3, FS - GT3B, FS - GT3C etc.
ER9X, OpenTX with FLYSKY tuner etc.
Walkera D7E, D10 with A7105 Module and etc.

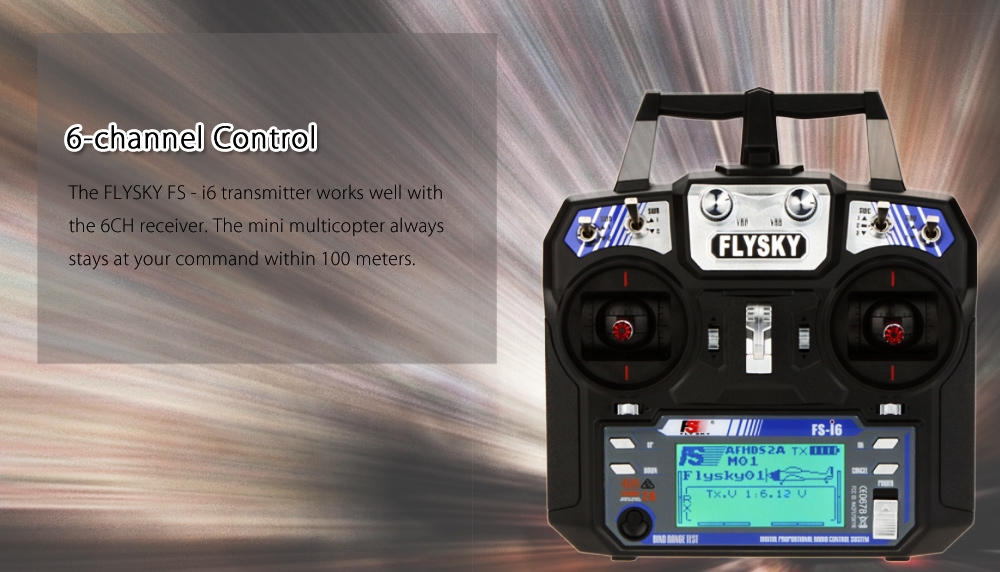

FLYSKY FS - i6 Transmitter
Channels: 6
2.4GHz system: AFHDS 2A and AFHDS
Bandwidth: 500KHz
RF power: less than 20dBm
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
Power: 6V - 4 x 1.5 AA ( not included )
RF power: Less than 20dBm
Certificate: CE0678, FCC
Specification
General |
Type: Frame Kit |
|---|---|
Racing Quadcopter Parameters |
Wheelbase: 95mm |
Motor |
CW / CCW: CCW,CW |
Camera |
Camera Pixels: 720 x 480px ( NTSC ); 720 x 576px ( PAL )
Video Resolution: 520TVL Video Standards: NTSC,PAL Sensor: CMOS |
Battery |
Battery (mAh): 3.7V 600mAh 25C LiPo ( included ) |
Dimension and Weight |
Product weight: 0.056 kg
Package weight: 0.994 kg Product size (L x W x H): 8.00 x 8.00 x 3.00 cm / 3.15 x 3.15 x 1.18 inches Package size (L x W x H): 34.00 x 23.00 x 12.00 cm / 13.39 x 9.06 x 4.72 inches |
Package Contents |
Package Contents: 1 x Frame Kit, 1 x FLYSKY FS - i6 Transmitter, 1 x 3.7V 600mAh 25C LiPo Battery, 1 x USB Charging Cable, 1 x Propeller Puller, 8 x Propeller, 2 x Spare Motor, 1 x Pack of Rubber Bands, 1 x Cable |
