Hawk-eye Little Pilot 5'' FPV Monitor Display Screen Built in 5.8G 32CH Receiver
Description:
Brand Name Hawk-eye Item Name Little Pilot Inch 5'' Display Resolution 800×480(HD Version)
480×272(SD Version) Backlight LED Backlight Brightness 700 cd/m 2(HD Version)
450 cd/m 2(SD Version) Display Ratio 16:9 Response Time 10mins Format PAL/NTSC Built-in battery working time 2.5-3 hours Input Signal Video(:PAL/NTSC) Output Signal Video Signal Interface Type RP-SMA Male Sensitivity -94db Require Matching Antenna 5.8G
Key Instruction:
Item name Function Shortcuts Mute key make trumpet mute + Key increase Automatically frequency search - Key reduce Track display Power / Menu key enter the menu options Power on / off
Frequency groups:
A1: 5.645G B1: 5.740G C1: 5.725G D1: 5.733G A2: 5.665G B2: 5.760G C2: 5.745G D2: 5.752G A3: 5.865G B3: 5.780G C3: 5.765G D3: 5.771G A4: 5.705G B4: 5.800G C4: 5.785G D4: 5.790G A5: 5.885G B5: 5.820G C5: 5.805G D5: 5.809G A6: 5.905G B6: 5.840G C6: 5.825G D6: 5.828G A7: 5.925G B7: 5.860G C7: 5.845G D7: 5.847G A8: 5.945G B8: 5.860G C8: 5.865G D8: 5.866G
The user manual,.
Package Included:
1x Monitor
1x Mounting bracket

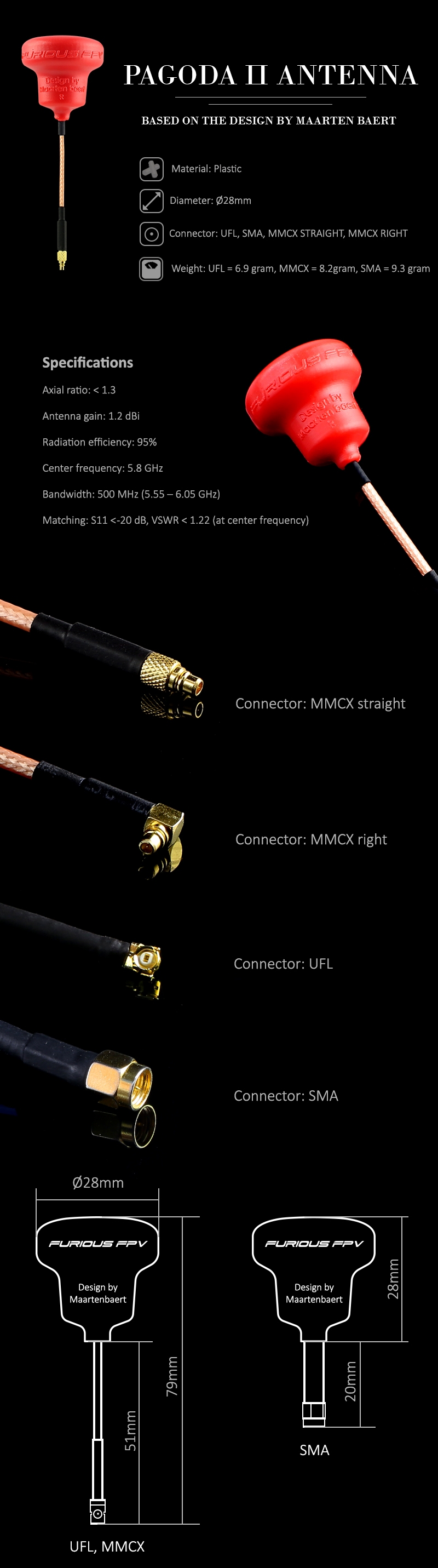

1x Mushrooms antenna
