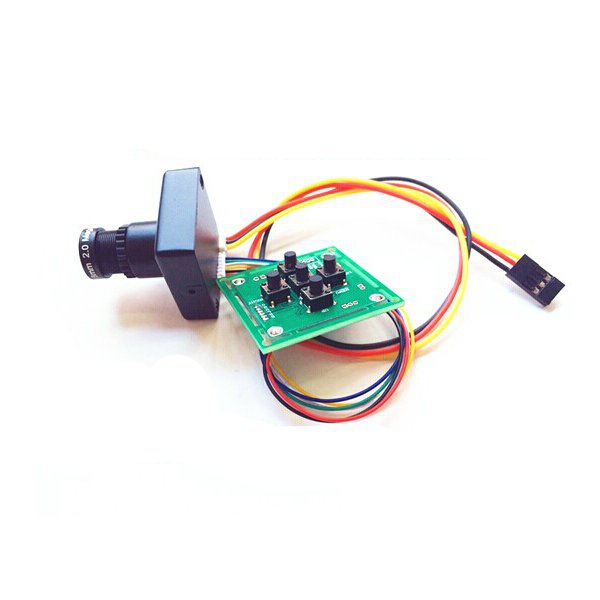

High resolution megapixel board camera with 3.6mm 90°lens. Easy operation since it has OSD menu. Ultra low illumination, reaches to 0.003lux. It withMultiple protective design, over-voltage protection/ lightning protection and to better suit for FPV.
Description:
Core chip: Sony CCD
Definition: 700TVL
Dimension: 30*30mm
Digital noise reduction: 3D support 0~15 adjustable
Support OSD menu
Minimum brightness: 0.003Lux/F1.2
Power:DC 12V 3.6mm
SNR: >=48db
AV output range: 1.0Vp-p/75ohm
Auto gain control: 0.25/0.50/0.75/1.00 adjustable, Max. up to 55db
White balance: ON/OFF optional
HLC backlight compensation
Electronic explosion
With short circuit, thunderproof protection
Shutter: 1/50(1/60) - 1/100000s
Gamma correction: 0.45/1.0
Work voltage: DC12V+/-5%
Work temperature: -20~+60°C
Work humidity: 0~96%
The color of the cable definition:
Control cable:1.Enter Key(Purple),2.Left(White),3.Right(Green),4.Up(Gray),5.Down(Blue)
Video cable: 1. Video(Yellow),2.Power(Red)
Package includes:
1 x Camera
1 x OSD Debug Palette
1 x 3 core cable
1 x AV cable
