Flytower F4 PRO F4 Flight Controller Integrated OSD & 48CH VTX + 4 In 1 40A ESC BLHeli_S Dshot600
Description:
F4 flight controller & 48CH VTX:
Board firmware version: Betaflight 3.1.7 OMNIBUSF4SD
Configure: Betaflight
VTX power: OFF/25/200/400mW (MAX 800mW)
CH: 48CH
OSD firmware: Betaflight OSD
Video camera voltage: any stand by 5V video camera
Board size: 36*36mm
Weight: 11.4g
4 in 1 40A ESC BLHeli_S:
PDB: integrated
Battery monitoring: integrated
FC power: integrated
Operating voltage: 2-4S Lipo
Maximum continuous operating current: 4*40A
Maximum instantaneous operating current: 4*45A(5 Seconds)
Oneshot 125/42/ Dshot 150/300/600: YES
BlheliSuite configurable: YES
Firmware version: BLHeli_S / Dshot 150/300/600 16.6(A_H_15/L_H_0)
Board size: 36*36mm
Weight: 10g
Flytower F4 PRO:
Any board weight: 21.4g (ESC+FC+VTX)
Total weight: 28.7g
Installation height(Add air-cooling fin): 15mm/20mm

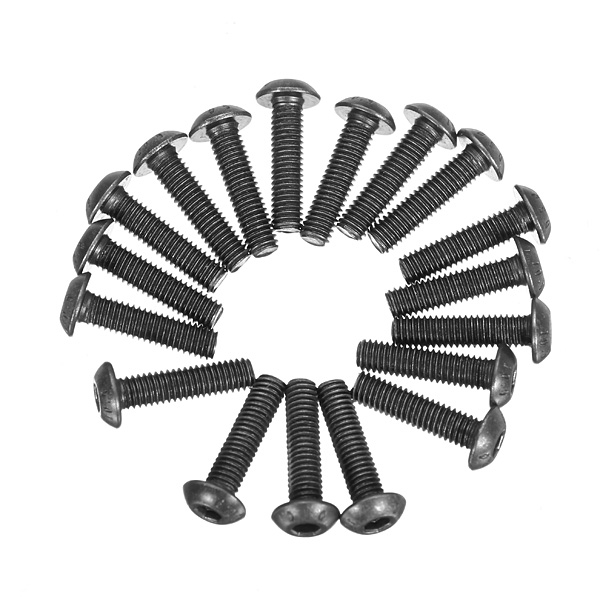

Screws: M3*18mm
Recommended rack plate thickness: not more than 3mm (3mm above the appropriate extension of the screw)
English Manual
Package included:
1 x 4 in 1 40A ESC BLHeli_S
1 x F4 flight controller & 48CH VTX
