Diatone RGB LED Board 5V 1S RGB5050 7 Colors For RC Multirotors
Description:

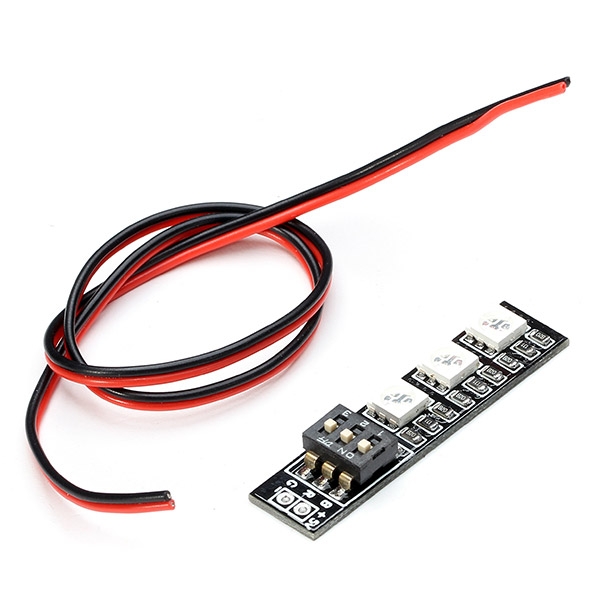

DIATONE RGB LED Board 5050/5V comes with three RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.
Features:
Comes with a 0.3m long cable, users can cut it to a suitable length;
Be ware of the positive and negative poles, as well as the insulation;
Switch the related codes to ON, seven colors are selectable;
The input is in a range of 4~6V DC, can be powered by 1S Lipo.
Specifications:
INPUT: 4~6V DC
Size: 42*10mm
Weight: 2g
Selectable Colors & Power:
B ON =Blue, 0.35W, 0.03
R ON =Red, 0.35W, 0.03A
G ON =Green, 0.35W, 0.03A
B+R =Megenta, 0.70W, 0.06A
B+G =Cyan, 0.70W, 0.06A
R+G =Yellow, 0.70W, 0.06A
B+R+G =White, 1.05W, 0.09A
Package included:
1 x LED Board
1 x Cable 0.3m
