Diatone Q450 Quad 450 V3 PCB Quadcopter Frame Kit 450mm



The V3 is our upgraded series. They are built from high quality and ultra durable materials. The main frame board is high quality glass fiber while the arms are constructed from ultra durable polyamide nylon. Their arms are reinforced and much more stronger, so this succeeds in preventing and reducing arm breakage.



This version 3 of the Q450 features integrated PCB connections so direct soldering the ESCs is practicable. This eliminates the need for a power distribution board or messy multi-connectors keeping you electronics layout very neat and tidy.



The Q450 also features colored arms (2 white and 2 red) which are great for orientation. It helps to keep you flying the right direction without the need of different colored propellers.



A great feature of this frame is the large mounting tabs at the front and rear of the main frame bottom plate for mounting cameras or other accessories. This shows us a great way to take aerial video or fly FPV without the use of any additional mounting brackets.



Assembly is a piece of cake with all of the required hardware included. With pre-threaded brass sleeves for all of the frame bolts, no lock-nuts are required any more. It utilizes one size of bolt for the whole build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.



Description:

Brand: Diatone

Item name: Q450 Frame Kit

Width: 450mm

Height: 55mm

Weight: 295g (without electronics)

Motor Mount Bolt Holes: 16/19mm



Features:

Built from high quality glass fiber and ultra durable polyamide nylon.

Arms are reinforced and much more stronger to prevent and reduce breakage.

Integrated PCB connections for direct soldering your ESCs.

Colored arms for orientation to keep you flying in the right direction.

Large mounting tabs on main frame bottom plate for easy camera or other accessories mounting.

Pre-threaded brass sleeves for all of the frame bolts.

Easy assembly.



Required (package not included):

4 x 22~28mm 800~1200kv (or similar size/kv)

4 x 15~30 Amp ESC (Recommend 30A OPTO)

4 x 8x4~10x4.5 Prop (2CW & 2CCW)

1 x Multi-Rotor Control Board (Recommend KK2.1)

1 x 1500~2200mAh 3s 11.1v Lipoly battery

The following products in our website are usage for this Q450 V3 frame kit:
Emax MT2213 935KV Brushless Motor, .
ZTW Spider Series 30A OPTO Brushless Speed Control ESC, .

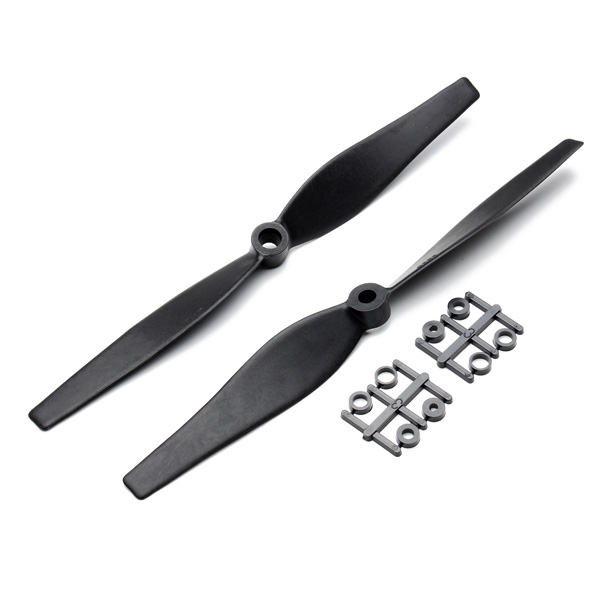

10x4.5 propeller, .
KK2.1 flight controller, .
DUPU 1500mAh 11.1V 3S 25C battery, .
3S High Rate Li-po Battery 11.1V 2200mAh 20C, .
ACE High Quality 2200mAh 20C 3S 11.1V Lipo Battery, .


Package included:

1 x Q450 Frame Kit
