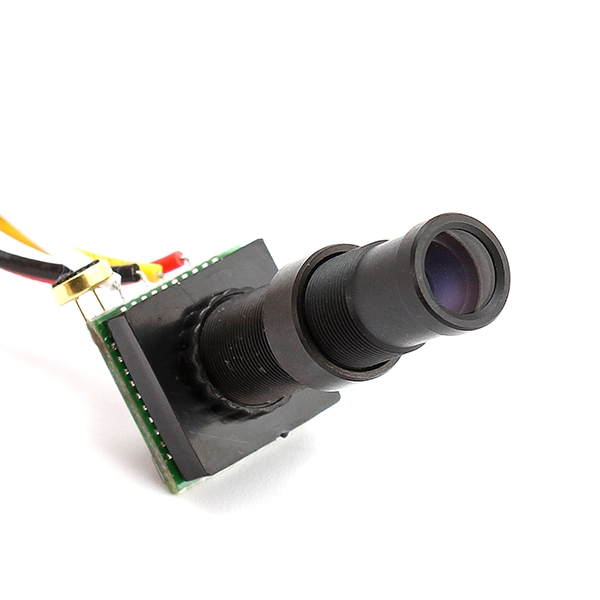

DC12V 1/3 960H CCD 700TVL 2.8mm Lens Wide Angle Camera for FPV QAV250
Description:
CCD 1/3" 960H Exview HAD CCD II Lens Standard 2.8mm lens Dimension 32mmx32mm Weight 13.5g Total pixels PAL:1020H×596V,NTSC:1020H×508V Effective pixels PAL:976H×582V,NTSC:976H×494V Signal system PAL/NTSC Resolution/Angle 700TVL/120degree Digital noise reduction 2DNR OSD menu support Minimum illumination 0.01LUX/F1.2 SNR ≥48dB Video output 1.0Vp-p/75Ω Automatic gain control adjustable 0.25/0.50/0.75/1.00, up to 55dB White balance optional off/on Backlight compensation HLC Exposure mode electron exposure Electronic shutter 1/50(1/60) - 1/100000 S Gamma correction 0.45/1.0 Synchronization method internal synchronization Working voltage DC12V Working current 70mA Working temperature -20â--60â Humidity 0%-98%
Features:
The latest SONY Effio-E chip solution supports OSD menu control, image crisp and clear, vivid colors, low illumination, wide voltage, micropower, wide dynamic
Camera Electronic Components does fullly spray proof water insulation paint
Notice:
Due to the nature of sony 673ccd,without IR filter lens for diffuse emission materials will cast black, glossy black discoloration is a normal phenomenon,if plus IR filter Lens,night vision will deteriorate.
AV cable:
Red:positive
Black:negative
Yellow:video signal
Package Included:
1x Camera
1x 30cm AV cable
