Bat-100 100mm Mini FPV Racing Drone PNP with F3 10A BLHELI_S Dshot600 25MW 48CH 600TVL VTX
This version comes without receiver.
Specification:
Item name: Bat-100 mini FPV racing drone
Wheelbase: 100mm
Size: 95mm * 80mm * 25mm
Weight: about 30g (without battery)
Motor: 0705 15000KV brushless motor
ESC: 6A BLHELI_S 16.5 1S 4in1 ESC Dshot600

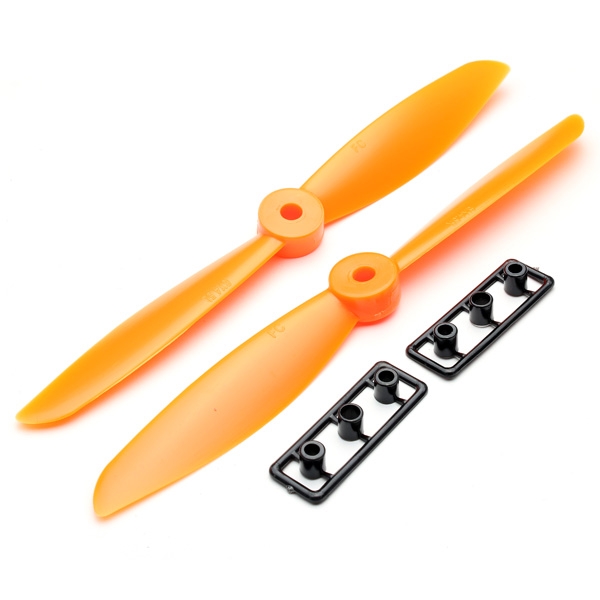

Propeller: 56mm 2-blade propeller
Camera: 600TVL camera with 25MW 48CH NTSC/PAL vedio transmitter
Flight controller: Minicube Betaflight F3 6DOF built-in OSD
OSD: Betaflight OSD
Firmware of FC: Betaflight 3.1
Flight time: 4-6 mins
Buzzer: 13*13mm (with LED)
Battery: 3.7V 500mah 30C lipo battery
Teeny1s F3 flight controller:
Size: 20mm * 20mm * 5mm
Mounting hole: 16mm * 16mm
MCU: TM32 F303 MCU
Sensor: SPI sensor MPU6000
Built-in Betaflight OSD
Firmware: OmnibusF3 Betaflight 3.1 Dshot
Teeny1s 6A 4in1 brushless ESC:
Size: 20mm * 20mm * 5mm
Mounting hole: 16mm * 16mm
Firmware: BLHELI_S 16.5
BB2, 48MHZ chip
Lipo battery: 1S
Continuous current: 6A
Peak current: 7A (5S)
Support Dshot600
Brake function in default
Note: Compatible receiver: PPM/SBUS/DSM
Package included:
1* Bat-100 frame kit
1* Teeny1s F3 flight controller
1* Teeny1s 6A 4in1 brushless ESC
4* 0705 15000KV brushless motor
2* 56mm CW 2-blade propeller
2* 56mm CCW 2-blade propeller
1* 600TVL camera with 25MW 48CH NTSC/PAL vedio transmitter
1* 3.7V 500mah 30C lipo battery
1* buzzer (with LED)
