5 in 1 V3 PDB 5V 12V Dual BEC LED Controller Tracker Low Voltage Buzzer For FPV Racer
Description :
Item Name : 5 in 1 V3 PDB
Input voltage range (3S-6S operation): 9 - 26VDC

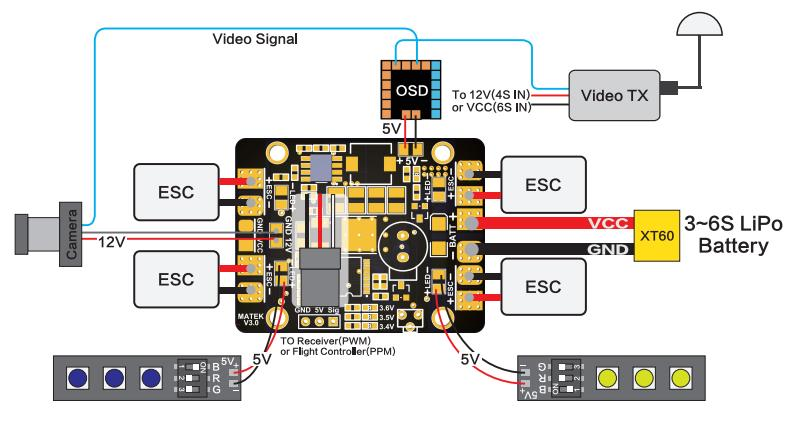

1 Battery input & 4 ESC outputs
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs )
4 pairs 5V LED light pads
Low voltage setting value indicators
Continuous current: 20A per output
Peak Current (10 seconds/minute): 25A per output
Dimensions: 46x36x6mm
Weight: 9g
Mounting holes 30.5mm square spacing
BEC 5V Output:
Designed for RC Receivers, Flight controllers, OSD, and Servos.
DC/DC synchronous buck regulator, Efficiency is up to 95%.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 3 Amps
Short-circuit tolerant (10 seconds/minute)
5V is also on the Aux pins + & -.
If other 5V BEC in use, Pls remove the red wire on Aux pins.
BEC 12V Output:
Linear regulator, very low noise.
Standard output designed to power cameras and video transmitters,etc.
Voltage: 12.0 +/- 0.3VDC (4~6S operation)
Continuous current: 500mA@16V IN (Max.1A 10s/minute), 250mA@24V IN
If the battery is 3S LiPo, Output voltage=3S LiPo voltage - 1V
Don’t use the BEC 12V to power VTX or Gimbals when 6S battery is in use.
Features:
Built-in 5 functions, small size & light weight
Lost Plane Finder
Low Voltage Alarm
2oz copper & 4-layers PCB.
ESC & Battery solder tabs in pairs
BEC 5V & 12V Output LED indicators
TVS input protection
Package Included :
1 x 5 in 1 PDB
